DLX Datalogger
$2,676.00

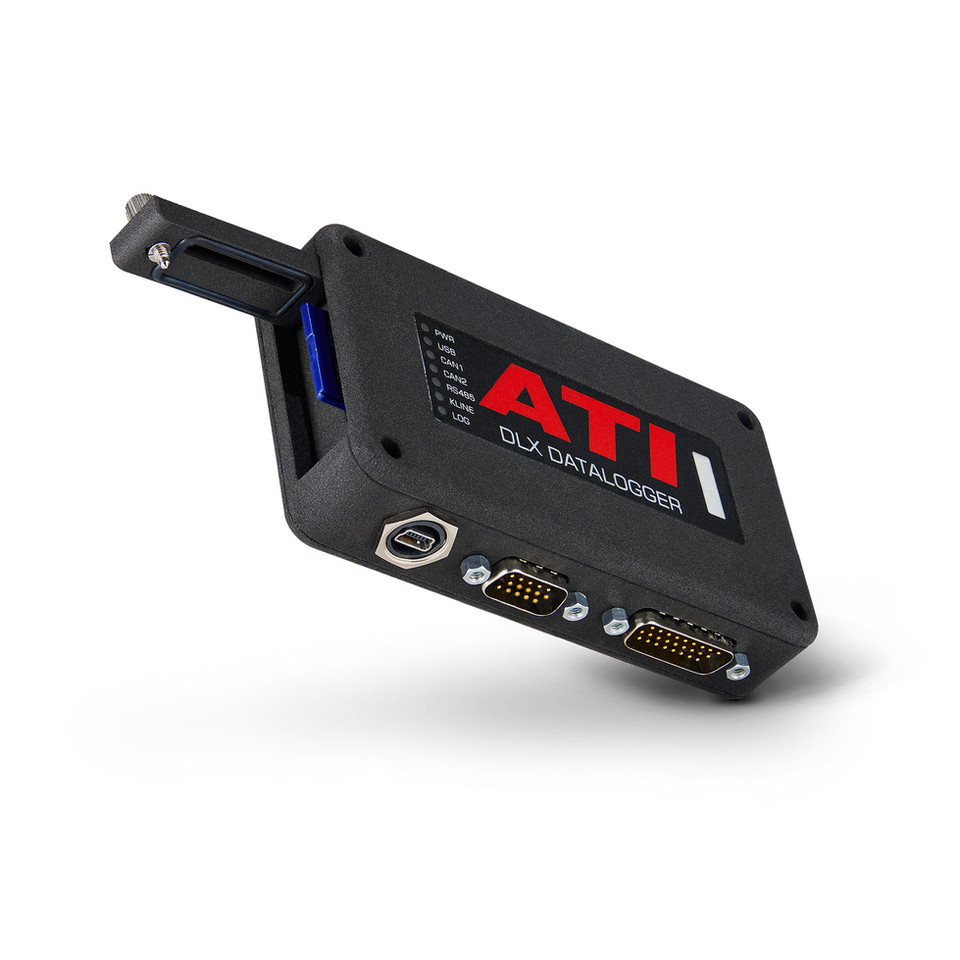

Designed primarily for 2-wheel applications where a small, rugged solution is of primary importance, the DLX Datalogger offers powerful features including digital inputs / outputs, voltage and thermocouple inputs, plus 2 CAN channels and K-line communications, all in one unique, compact package.
Easily configured using the ‘base’ free version of ATI’s VISION Calibration and Data Acquisition software, the DLX is easily configured to interface to ECUs or to communicate with ATI data acquisition hardware. Data is stored on the DLX in PC readable files that can be easily accessed via the USB port or by removing the SDHC card. Files are saved to the SDHC memory card using the industry standard ASAM MDF V4 format.
Manufactured with a rugged IP40 nylon enclosure, the DLX is rated as IP65 splash proof.
Quantity
This product may be made to order. Please continue ordering as normal.
Specifications
- Four digital input/output channels
- Four +/-5 V differential analog inputs
- Four 0 to 20 V single-ended analog inputs
- Four K-type thermocouple input channels
- Two high speed CAN 2.0B channels
- One ISO 9141 compliant K-Line channel

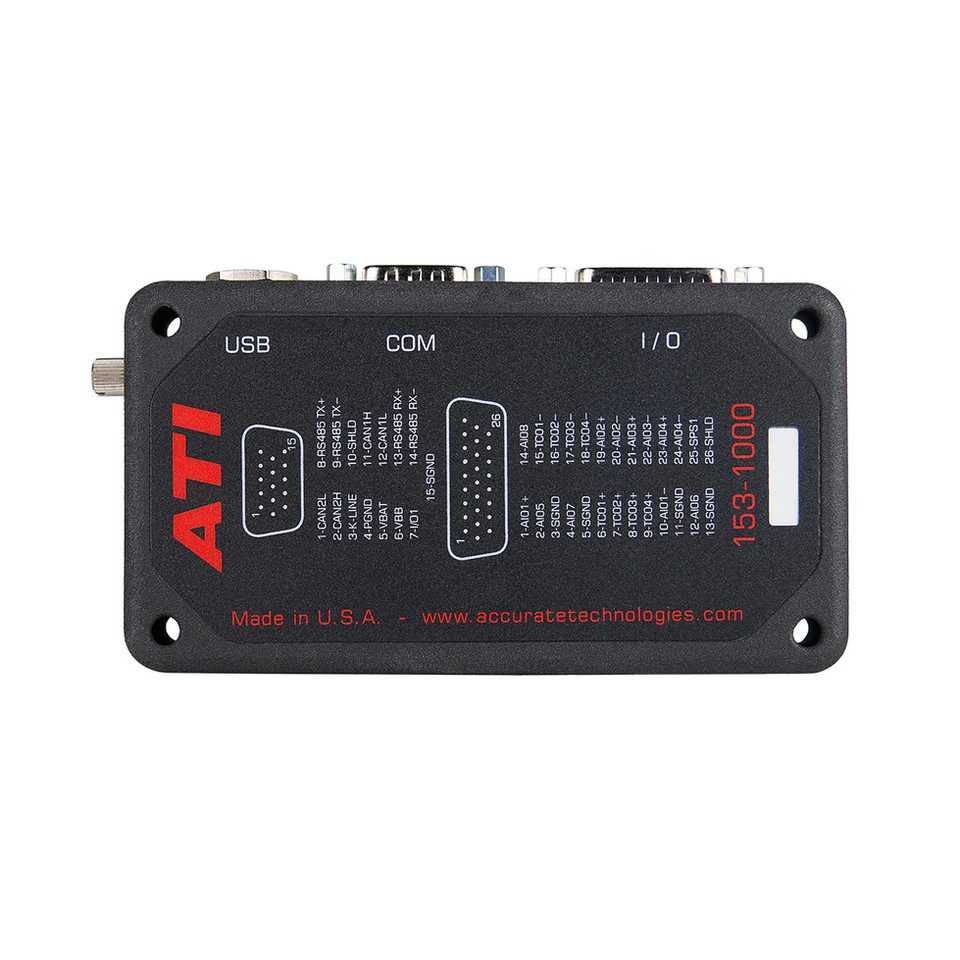

- Connectors
- To PC: USB Mini-B
- I/O Signal (INST): DB26HD-M
- Power and Data (COM): DB15HD-M
Warranty
1 year
