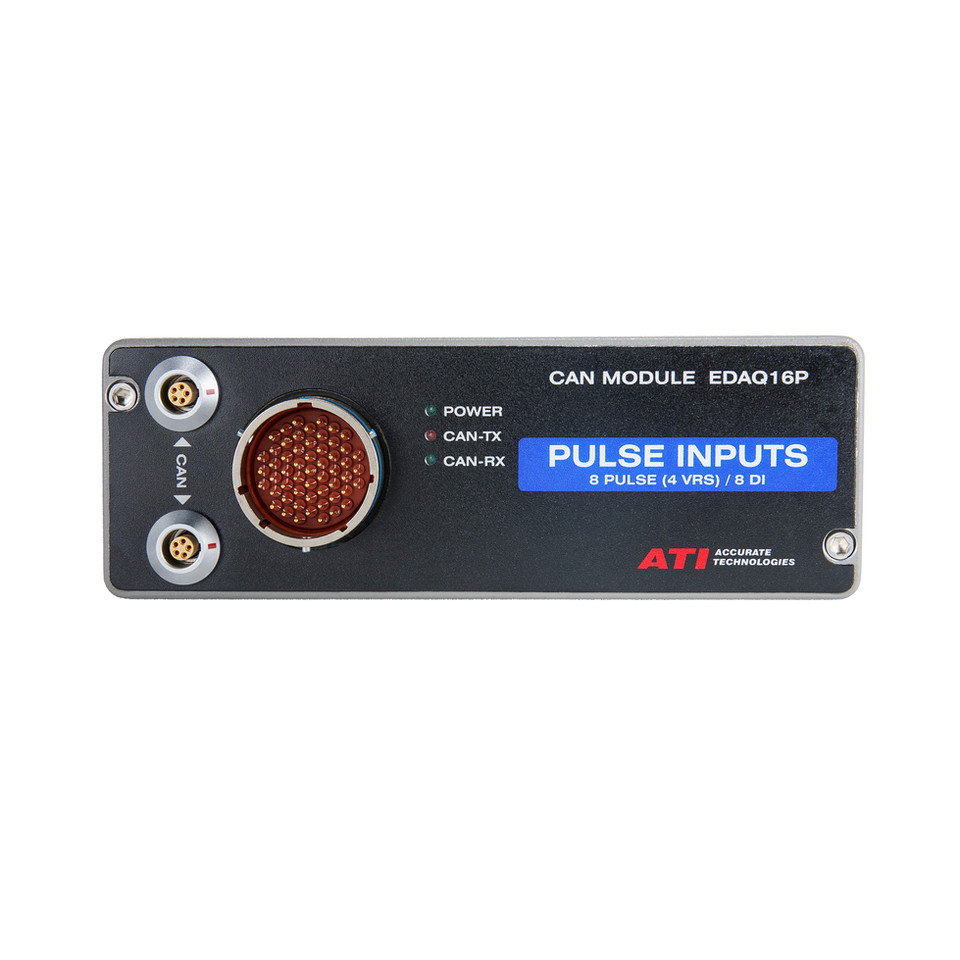

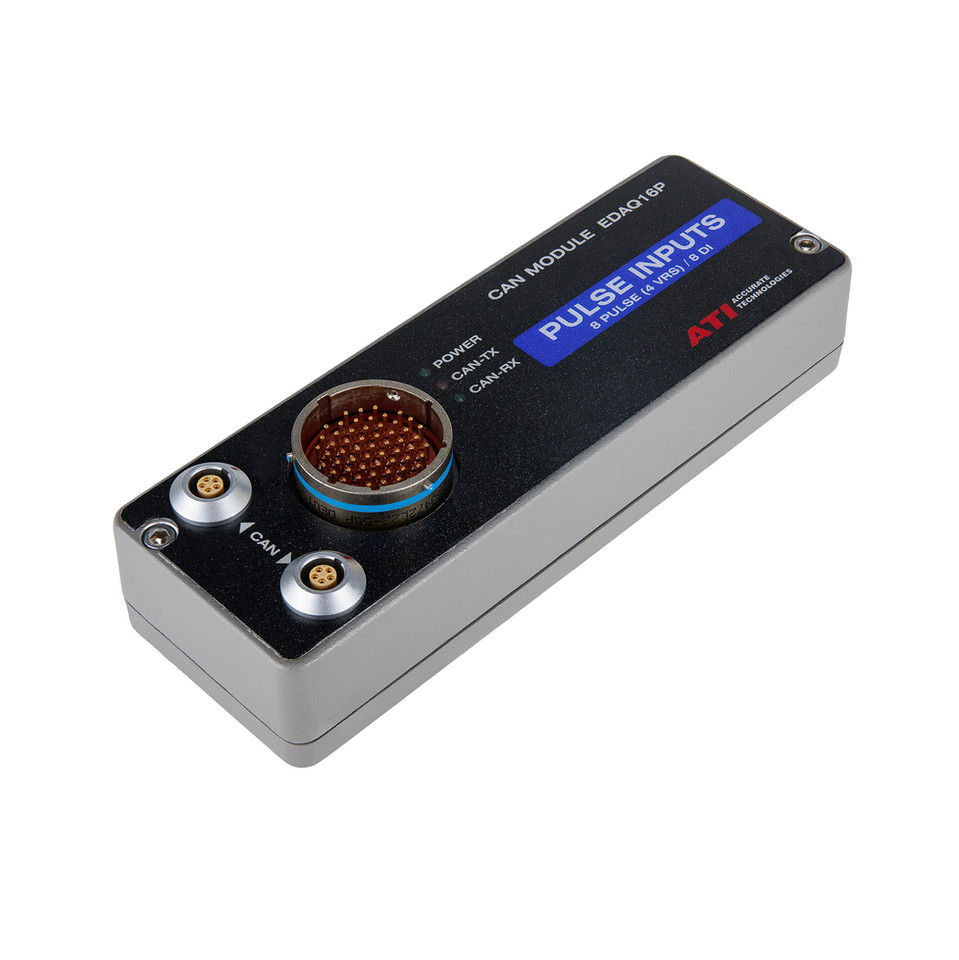

EDAQ16P Pulse Data Acquisition Module
$4,526.00
The EDAQ16P Pulse Inputs Data Acquisition Module measures frequency associated with digital signals, such as wheel speeds, RPM, solenoids, or switches. These modules communicate to VISION Calibration and Data Acquisition software through the VISION Network Hub using high-quality interconnects.
Users will be able to take advantage of recording data directly from existing sensors or additional sensors bypassing the ECU and feeding directly into VISION. This helps those looking for additional points of reference or looking to reduce errors caused by latency between the original data source and the output to VISION.
Quantity
This product may be made to order. Please continue ordering as normal.
Specifications
(4) differential universal VRS/pulse (4) digital pulse inputs 5-12VDC (8) digital state inputs
Input Signal Frequency 1Hz - 50KHz
Programmability Input signal polarity, filter, pull-up, and signal level programmable
Operating Temperature -40°C to +85°C / -40°F to +185°C
Weight (max) 40g / 15.9oz
IP64 sealed billet aluminum enclosure
Data/power Connectors 5-pin sealed LEMO 1B-Series
Dimensions 63.5 x 34.9 x 174mm / 2.50 x 1.375 x 6.84in
Warranty
3 years
