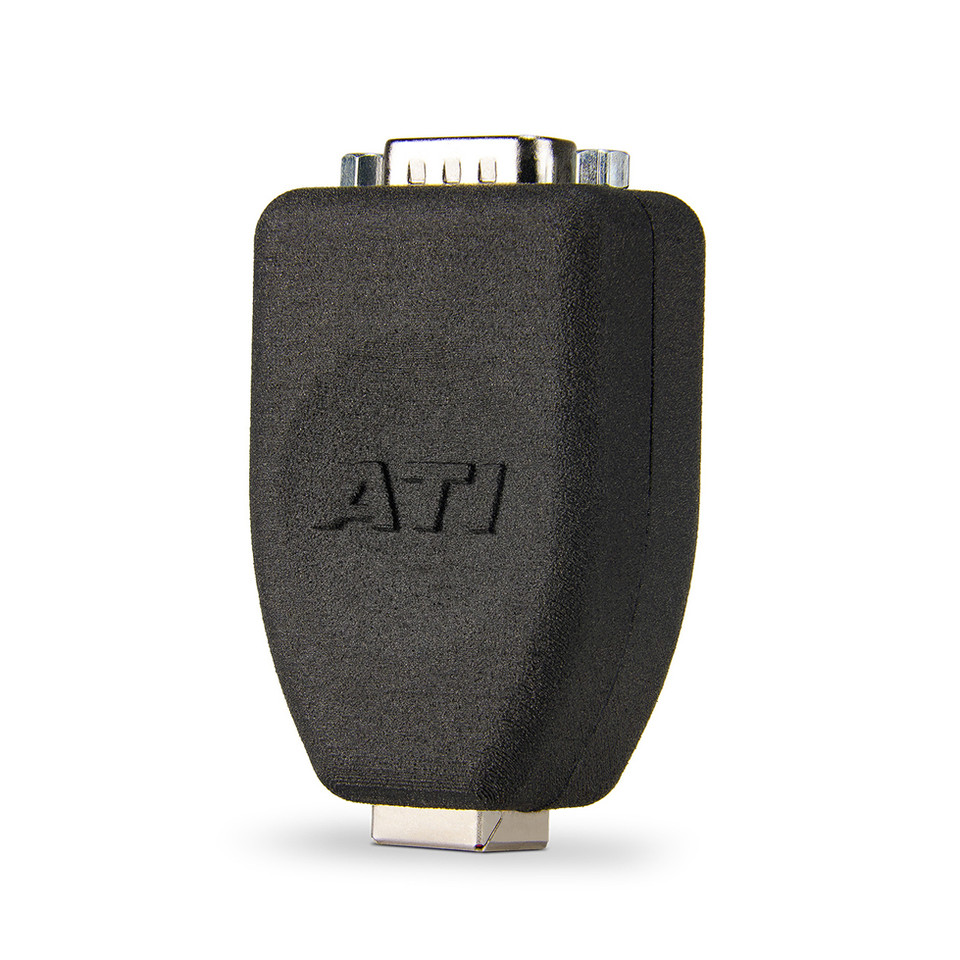

CANary 2-Channel CAN/LIN Interface
From
$511.00
The CANary is a pocket-sized 2-channel classic CAN interface for use with ATI’s VISION Calibration and Data Acquisition and CANlab software suites. Communicating via the Universal Serial Bus (USB) connection, CANary enables communication between VISION software to ATI data acquisition hardware, ECUs for calibration, and other CAN-based products.
Users can configure CANary’s CAN channels to bridge data between ATI’s data acquisition hardware, ECUs (using CCP or XCP), or other CAN devices that are compatible with VISION Calibration and Data Acquisition Software. CANary supported devices include ATI’s EMX Data Acquisition Series and most third party data acquisition modules.
Manufactured with a rugged IP40 nylon enclosure, CANary’s J2534/2-2019 API support allows usage of multiple CAN channels with 3rd party software applications and maintains support for the GMW17753 method.
Quantity
Specifications
The CANary’s utlra-compact design accommodates usage in any application. Its functionality replaces the traditional VISION Network Hub for interfacing CAN devices to VISION in applications not requiring data logging, such as:
- ATI DAQ hardware, including EMX Data Acquisition Series, EDAQ Data Acquisition Series, Voltage Output Module (VOM), and Vehicle Information Display (VID)
- ASAM ECU Communication Standards, including CCP and XCP
- Any generic CAN hardware utilizing database files
- IP40 Composite enclosure made of robust Nylon 11
In the Box
CANary
USB Cable
CANary Kit:
CANary (153-0006)
USB Cable
CANary Splitter Cable (150-0251)
Warranty
1 year
