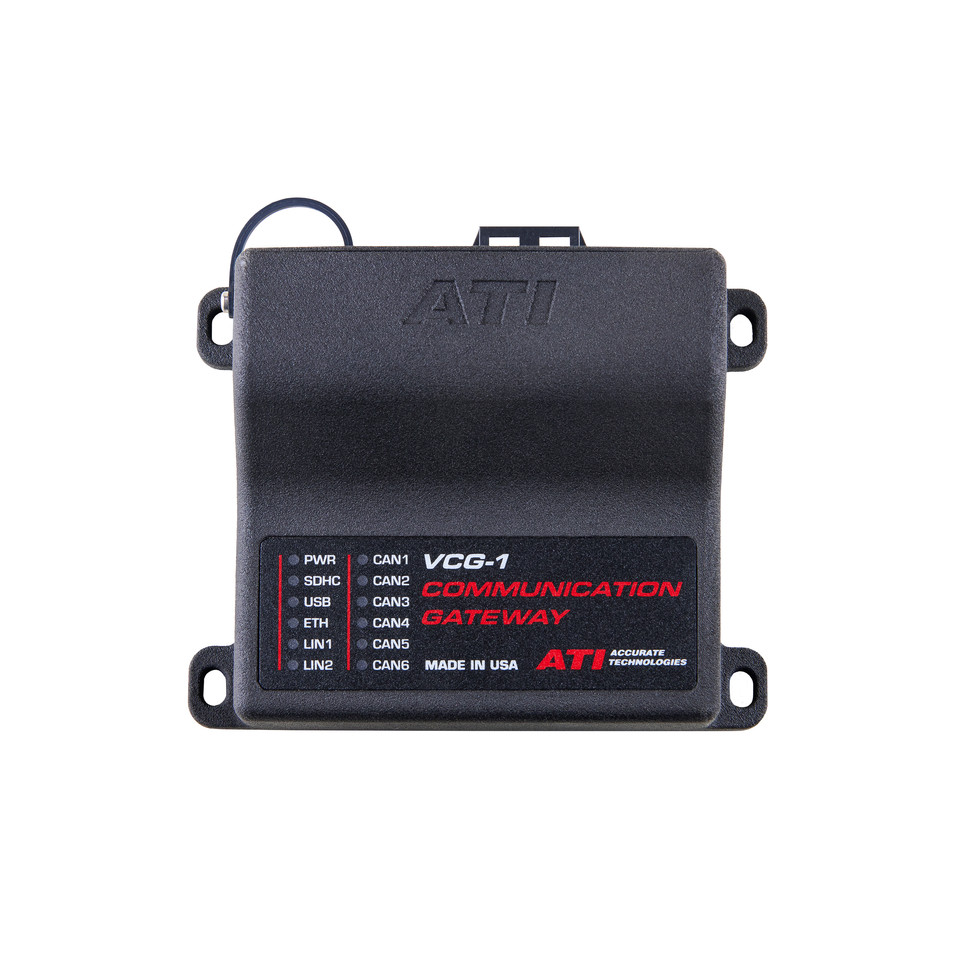

VCG-1 Vehicle Communication Gateway
SKU 153-0013
153-0013
Price
$2,757.00
The VCG-1 Vehicle Communication Gateway is an easy to configure, multi-port, multi-bus message routing and data translation device. Designed to normally operate standalone, VCG-1 can help bridge multiple modules as systems transition to newer communication busses and technologies, such as CAN-FD and Automotive Ethernet.
VCG-1 can run user written scripts to process the messages and data that it is routing, allowing the unit to connect multiple modules together using different protocols and physical layers. This makes it ideal for prototype and development builds.
Quantity
Only 2 left in stock
Specifications
- (6) CAN-FD channels for interfacing to standard CAN and CAN-FD devices
- (2) LIN channels
- (1) 100Base-T1 Automotive Ethernet channel
- Merge and convert data from LIN, CAN, CAN-FD and Automotive Ethernet
- Route messages between traditional CAN networks and new CAN-FD networks
- Physical switches per channel maintain CAN termination regardless of device power
- Galvanic isolation on all CAN channels
- Wide -40 to +85°C operating temperature for in-vehicle use including hot/cold weather testing
- Can be powered via USB 2.0 Type-C connector for easy PC-based configuration
- ECU-style weatherproof 26-pin sealed I/O connector
- Automotive surge tolerant wide operating voltage of 6 to 36VDC
- Waterproof sealed nylon enclosure with built-in mounting provisions
Warranty
1 year
