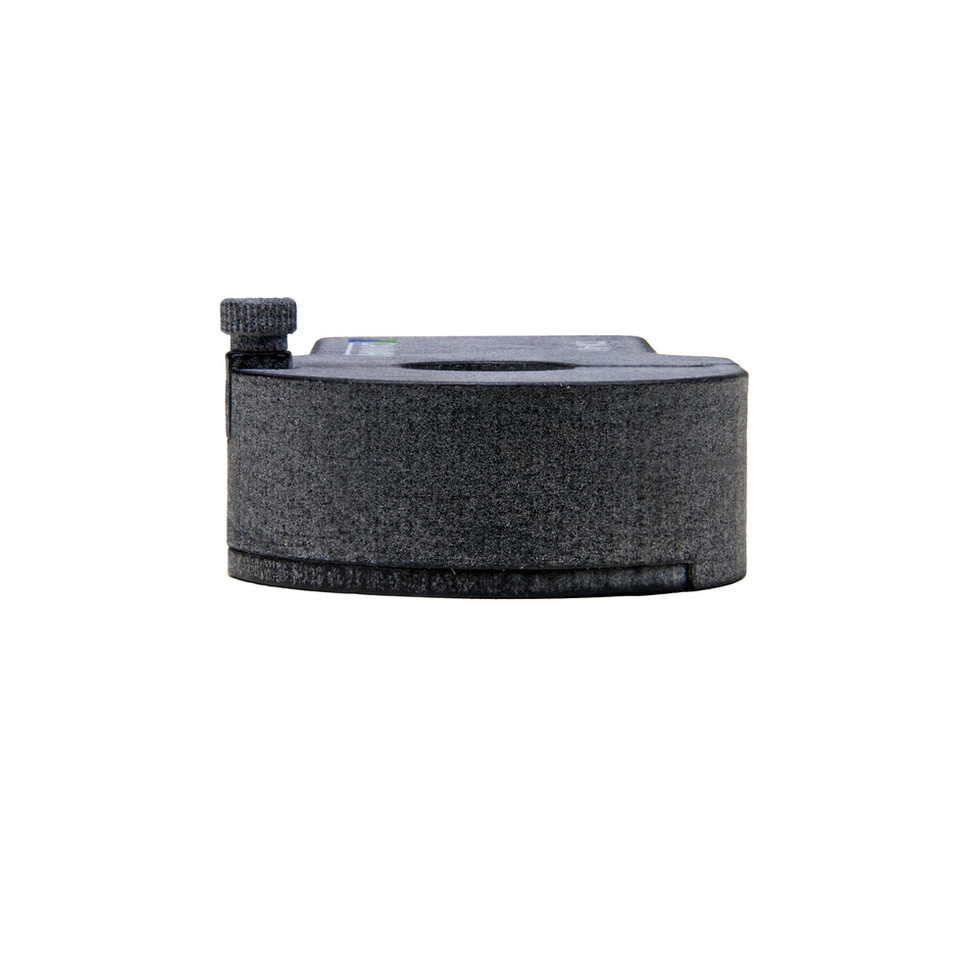

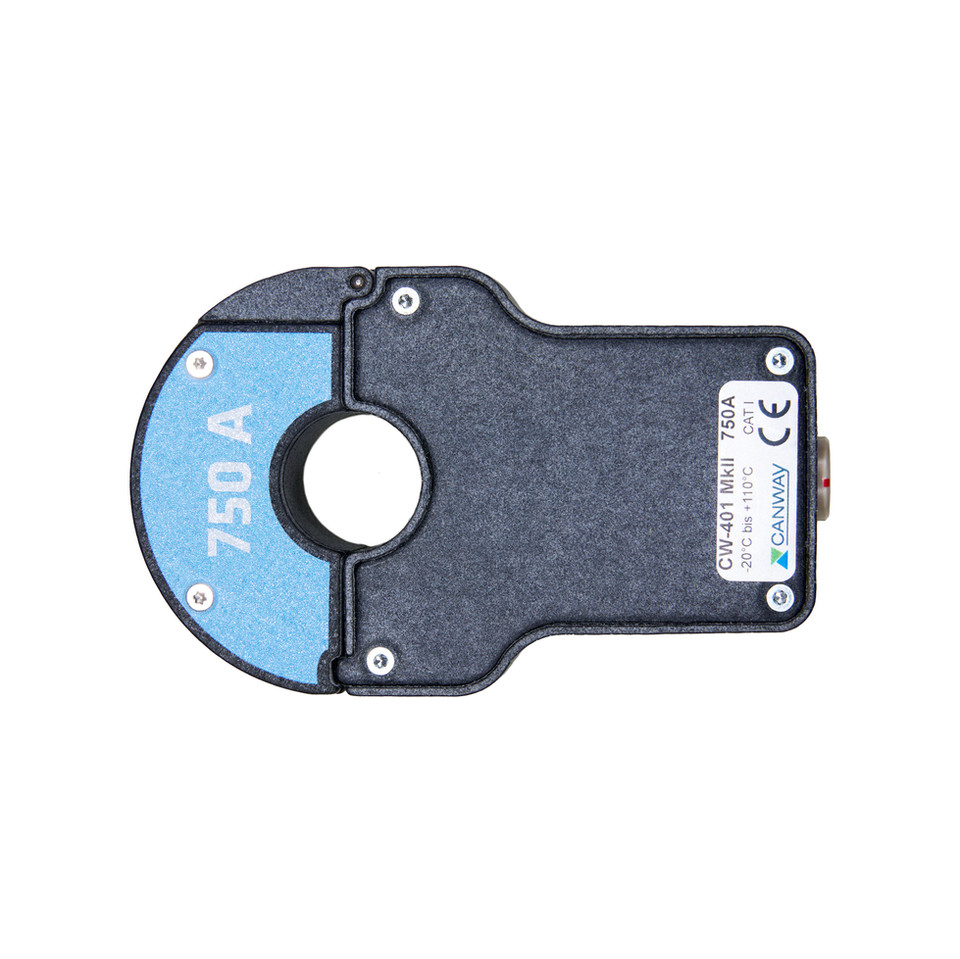

CANWAY CW-401 Current Clamp MK II 750A
SKU 9001-00266
9001-00266
Price
$1,730.30
Highly accurate, contactless clamp meter capable of measuring currents up to ±750 A
Quantity
This product may be made to order. Please continue ordering as normal.
Specifications
- Versions for the measurement ranges: ±10 A, ±30 A, ±50 A, ±150 A, ±350 A, ±500 A, ± 750 A and ±1000 A
- Resolution 1% ±50 mA relative to measuring range (up to ±50A additionally ±50 mA)
- Temperature range: -40 °C up to +120 °C
- Temperature compensation, sensor position- and remanence correction
- Output of the measuring values via CAN bus 2.0 A/B (ISO 11898-2)
- Robust housing
- Small form factor, for application to hard-to-reach measuring points
- Factory calibration
- Intuitive configuration software
