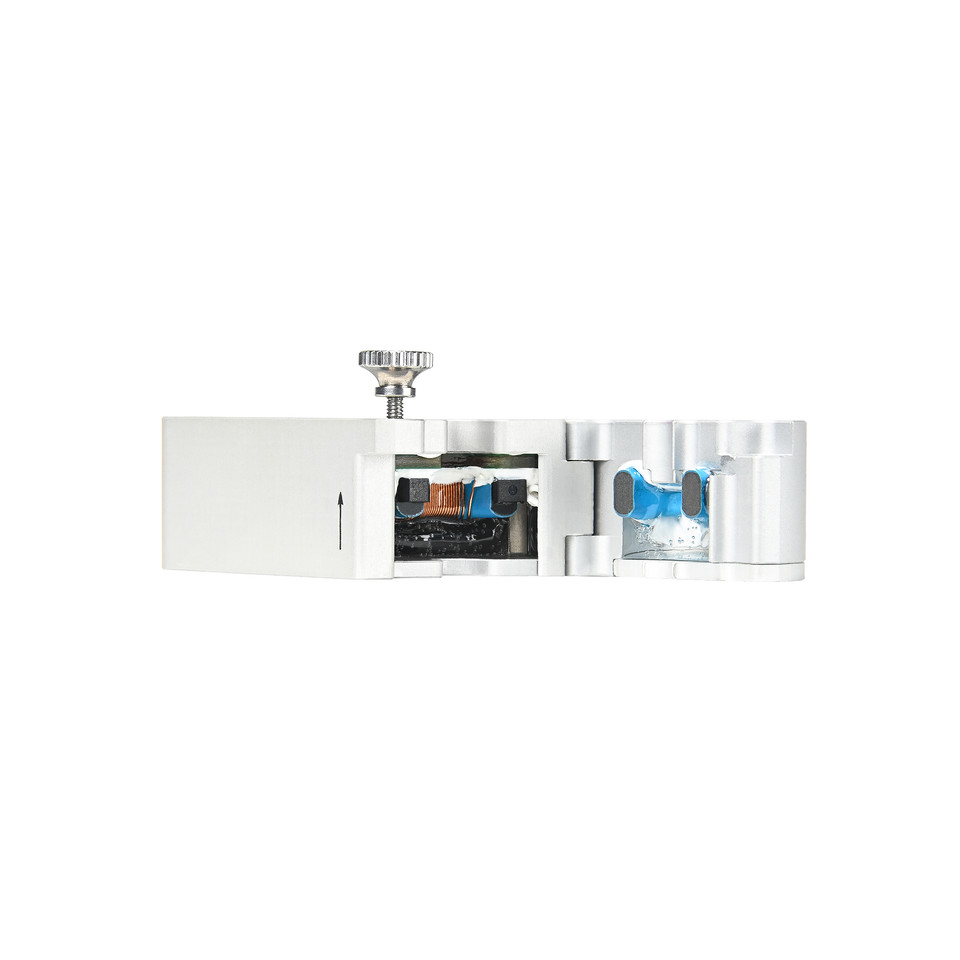

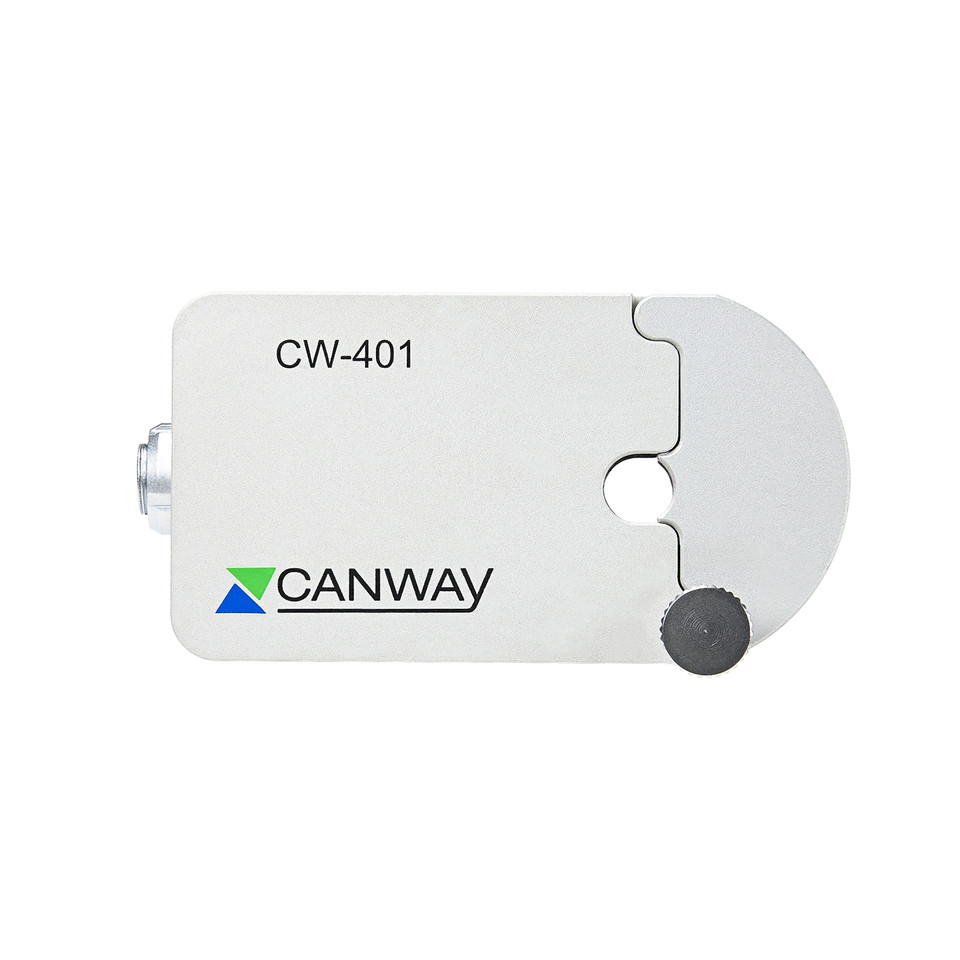

CANWAY CW-401 Current Clamp with CAN-Interface, Measurement range ±50 A
SKU 9001-00225
9001-00225
Price
$1,175.00
The CW-401 MkII is an extremely precise clamp meter designed for contactless current measurements across the measurement ranges from ±10 A to ±1000 A. Thanks to its premium, user-friendly finish and compact size the clamp meter is particularly suitable for use in difficult conditions and inaccessible places, for example in engine compartments. Intelligent temperature compensation ensures the clamp meter supplies precision measured values even in high ambient temperatures up to +120 °C. This is achieved by digitally processing the measured values in a microprocessor.
Quantity
This product may be made to order. Please continue ordering as normal.
Specifications
- Versions for the measurement ranges: ±10 A, ±30 A, ±50 A, ±150 A, ±350 A, ±500 A, ± 750 A and ±1000 A
- Resolution 1% ±50 mA relative to measuring range (up to ±50A additionally ±50 mA)
- Temperature range: -40 °C up to +120 °C
- Temperature compensation, sensor position- and remanence correction
- Output of the measuring values via CAN bus 2.0 A/B (ISO 11898-2)
- Robust housing
- Small form factor, for application to hard-to-reach measuring points
- Factory calibration
- Intuitive configuration software
